瀏覽次數:1249by:禾硯實業
|
鋸骨機 ,鋸骨机,肉類加工機械,meat band saw
- 鋸骨机帶動輪採用不銹鋼 304。
- 帶動輪是直接連接，馬達可選配煞車功能。
- 鋸帶壓力張緊裝置，易於調整及安裝。
- 雙邊帶動輪的設計防止帶子脫落.
- 高速鋸切割更平穩,減少肉屑產生.
- 門蓋裝安全開關, 安全性高.
- 機器設計符合CE標準。
- 工作臺採用不銹鋼製成，厚度為5mm。
- 附安全推桿設計，提高工作安全性。
|

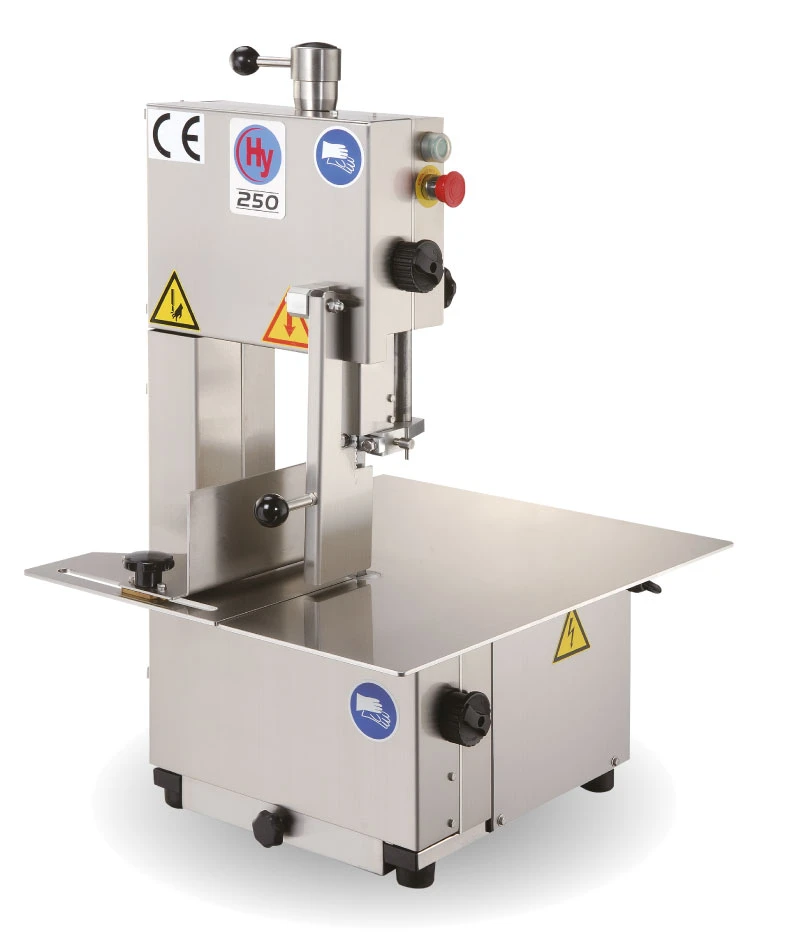

250R/L High Speed Meat Band Saw
FEATURES |
|
– |
The machine is made of aluminum alloy and with powder-coating to make it easier to clean. |
|
– |
The design of cutting-band raised on both sides is to prevent the band from falling. |
|
– |
Tension-control device is applied in cutting-band to make adjustment easier and facilitate installation. |
|
– |
The working table is made of stainless steel. |
|
– |
Safe tappet can be chosen to go with the machine to make work safer. |
|
HY-320R/L High Speed Meat Band Saw
|
|
FEATURES |
|
– |
The machine is made of stainless steel 304 and easy to clean. |
|
– |
The motion wheel is made of stainless steel 304. |
|
– |
The motion wheel is directly connected, and the motor is with a power-cutting break. |
|
– |
Tension-control device is applied in cutting-band to make adjustment easier and facilitate the installation. |
|
– |
The design of cutting-band raised on both sides is to prevent the band from falling. |
|
– |
Our company has the certification of CE. |
|
– |
Either the left or the right model can be tailor-made. |
|
– |
It is with a scale to facilitate operation. |
|
– |
The upper wheel is with a manual break. When the blade is broken, the lower wheel will cut off the power for the break. When the upper wheel turns again, manual break can be used instead. |
|
– |
The working table has a thickness of 5mm. |
|
|
|
SPECIFICATION：
|
Model |
Machine Size
(LxWxH) |
Table
(LxW) |
Max. Size of out
(WxH) |
Motor |
Sawing Length |
Per Second |
Weight |
|
HY-250 |
586x560x891mm |
586x485mm |
180x230mm |
1HP sing ph |
1650mm |
18.9m |
70kgs |
|
HY-320R/L |
714x690x1672mm |
714x690mm |
298x320mm |
2HP/3Ph |
2485mm |
28m |
125kgs |
