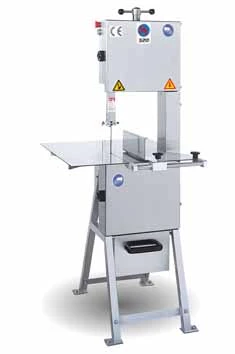

HY-320R/L High Speed Meat Band Saw
FEATURES |
|
– |
The machine is made of stainless steel 304 and easy to clean. |
|
– |
The motion wheel is made of stainless steel 304. |
|
– |
The motion wheel is directly connected, and the motor is with a power-cutting break. |
|
– |
Tension-control device is applied in cutting-band to make adjustment easier and facilitate the installation. |
|
– |
The design of cutting-band raised on both sides is to prevent the band from falling. |
|
– |
Our company has the certification of CE. |
|
– |
Either the left or the right model can be tailor-made. |
|
– |
It is with a scale to facilitate operation. |
|
– |
The upper wheel is with a manual break. When the blade is broken, the lower wheel will cut off the power for the break. When the upper wheel turns again, manual break can be used instead. |
|
– |
The working table has a thickness of 5mm. |
|
|
|
|
SPECIFICATION |
|
Model |
Machine Size
(LxWxH) |
Table
(LxW) |
Max. Size of out
(WxH) |
Motor |
Sawing Length |
Per Second |
Weight |
|
HY-320R/L |
714x690x1672mm |
714x690mm |
298x320mm |
2HP/3Ph |
2485mm |
28m |
125kgs |
|
